How to Build AI Image Analyzer: A Step-by-Step Guide

We’ll build an image analyzer with Project IDX and the Gemini API. I’ll walk through the browser-based setup, code, and a test image.

Getting Started with Project IDX

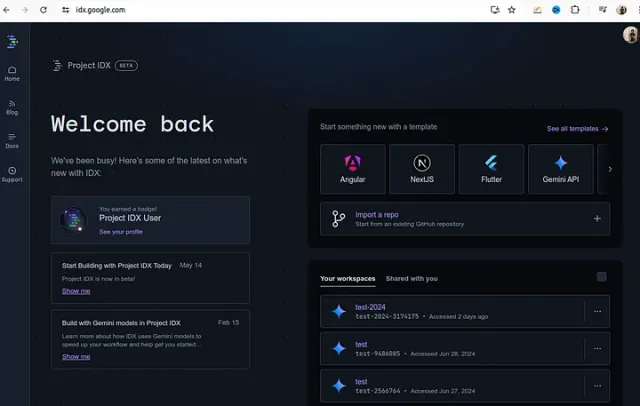

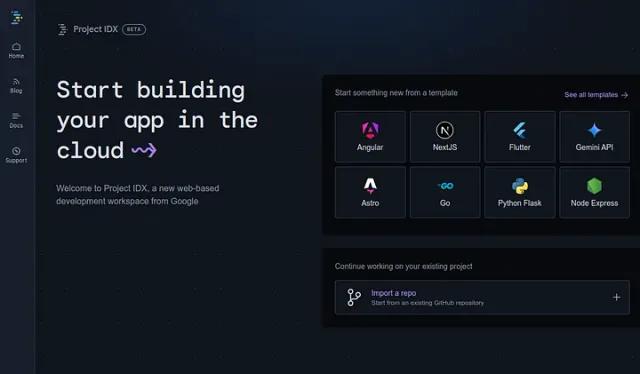

The first step is pretty simple. We need to open the website idx.google.com. If you haven't registered yet, you have to register first, and then you can see the screen below.

1. Choose a Template: I will choose the Gemini API template.

2. Name Your Project: I will call it "test 2024".

3. Select Environment: I will choose "Vite", which is a JavaScript web application environment.

4. Create the Project: Press the create button.

After a few minutes, IDX will create everything for us, and we will see our template files, which we can modify as we like.

Modifying the Template

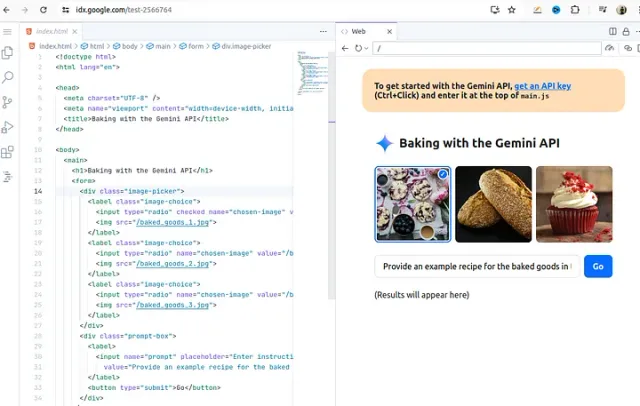

This is our index.html file. We can modify it the way we like, but let's first look at it. The initial template contains almost everything that we need. This template uses the Gemini 1.5 - flash model, so it's more than enough for us.

Getting an API Key

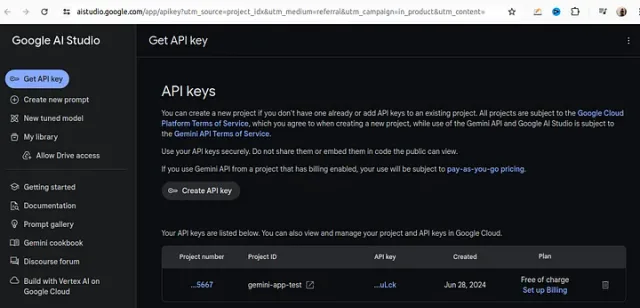

As you can see, the application doesn't work initially because we need to get an API key first. Go the website https://aistudio.google.com/app/apikey and obtain your key there. If you want detailed instructions on how to get an API key, please watch another video about Project IDX. Once you get your key, copy it and then go to the main.js file and replace the placeholder with your API key.

Testing the Application

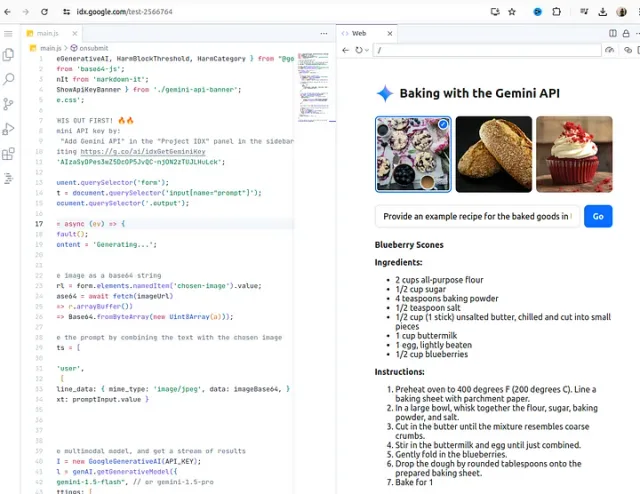

Let's check if our application is working. Press "Go" and see what Gemini returns to us.

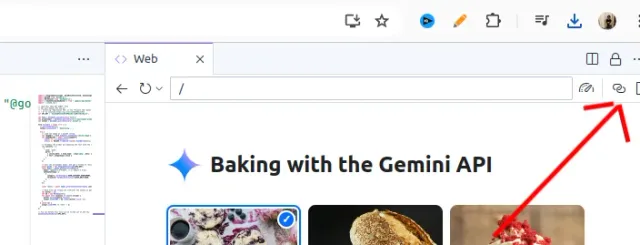

As you can see, Gemini understands what's inside the picture and suggests some recipes to bake this kind of bakery. Since this application is already on the server, you will be able to share the link or open this application in your browser.

For a text-based project using the same API family, try building a Python chatbot with Gemini.

The URL is not beautiful yet; however, you will be able to see that everything is working, and you can share this link with your partners or co-workers.

Adding Image Upload Functionality

To complete our AI image analyzer, we need to be able to add our own image. Let's make some adjustments to the template, first is index.html file:

1. Change the Application Name: I will call it "AI Image Analyzer".

2. Delete the HTML: Delete the predefined images. Lines from 14 until 27.

<div class="image-picker">
 <label class="image-choice">
   <input type="radio" checked name="chosen-image" value="/baked_goods_1.jpg">
   <img src="/baked_goods_1.jpg">
 </label>
 <label class="image-choice">
   <input type="radio" name="chosen-image" value="/baked_goods_2.jpg">
   <img src="/baked_goods_2.jpg">
 </label>
 <label class="image-choice">
   <input type="radio" name="chosen-image" value="/baked_goods_3.jpg">
   <img src="/baked_goods_3.jpg">
 </label>
</div>

3. Add an input field for uploading images. Line 15

<input type="file" id="fileInput" name="file">

4. Change the input name prompt value to "Ask anything you want about this image".

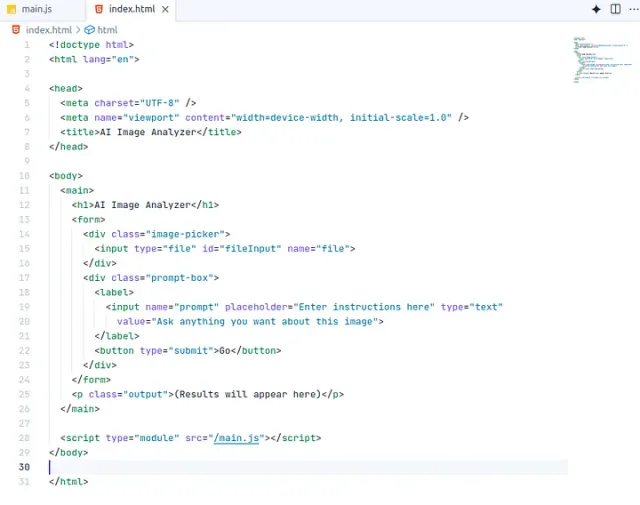

The resulting HTML should look like the picture below.

Updating the JavaScript

We need to define JavaScript code to read our file. Open the main.js file and make the following changes:

Remove the code from line 22 until 26.

// Load the image as a base64 string
   let imageUrl = form.elements.namedItem('chosen-image').value;
   let imageBase64 = await fetch(imageUrl)
     .then(r => r.arrayBuffer())
     .then(a => Base64.fromByteArray(new Uint8Array(a)));

Add a new code starting from line 22.

// Load the image as a base64 string
   const fileInput = document.getElementById('fileInput');
   const file = fileInput.files[0];


   const imageBase64 = await new Promise((resolve, reject) => {
     const reader = new FileReader();
     reader.readAsDataURL(file);
     reader.onload = () => {
       const base64String = reader.result.split(',')[1]; // Extract base64 part
       resolve(base64String);
     };
     reader.onerror = reject;
   });

Your application will look like this in the screenshot below.

Final Testing

Let's check the result. Upload an image, ask what is on the image, and press "Go".

My image example

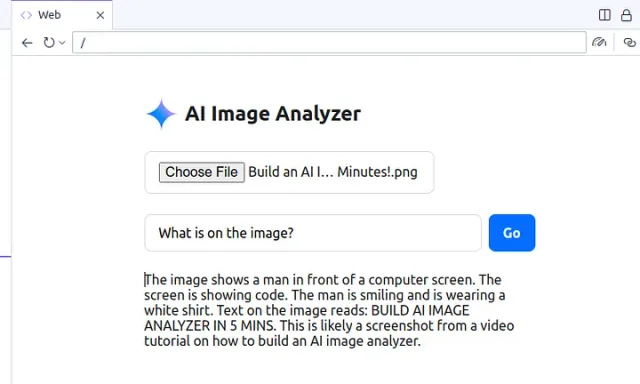

The result:

As you can see, the Gemini API explains everything about the image. Our AI image analyzer is working!

Video Tutorial - How To Build AI Image Analyzer

How To Build AI Image Analyzer

Conclusion

You now have an image analyzer using Project IDX and the Gemini API. Try a different image and check the response. If you have questions, share them below.
